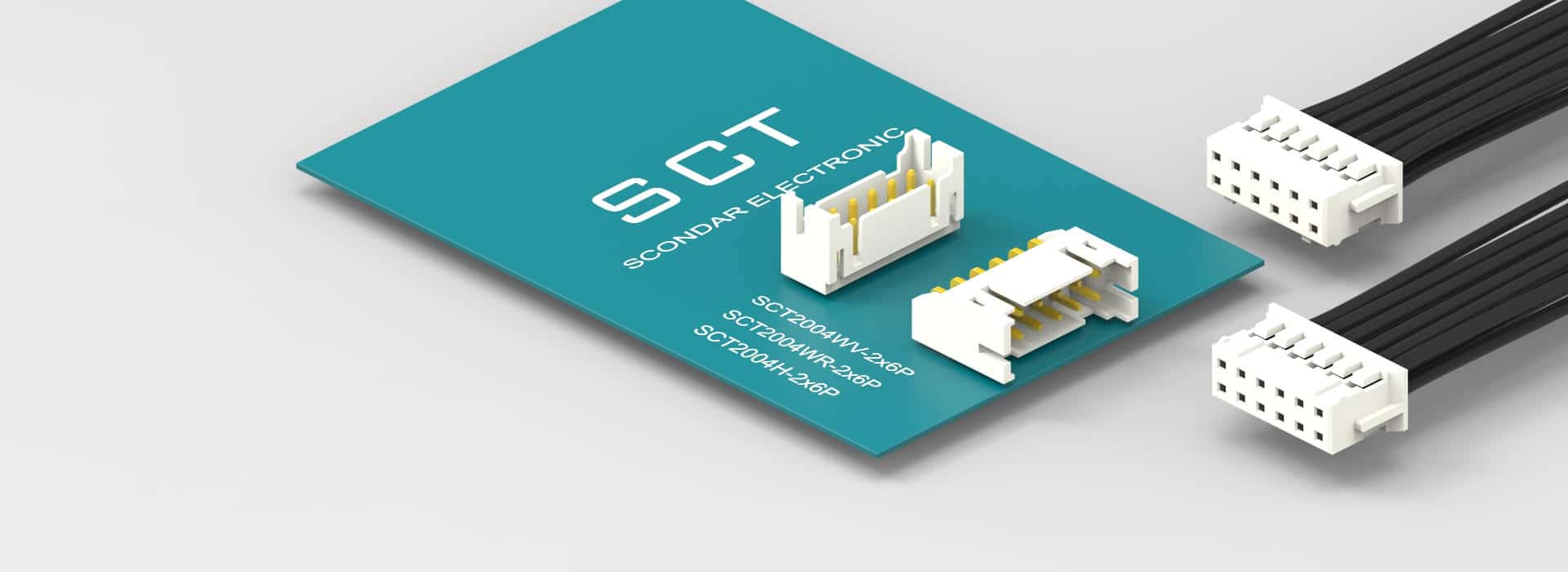

Wire to board connector’s pitch is 0.8mm-10.mm   which  is  included  housing, terminal, and wafer ( DIP wafer and SMT wafer). After Terminal and wire crimping, then insert into housing is wiring harness, which is used for connection with SMT wafer. Usual raw material is PBT, PA66,PA6T,PA9T, LCP and so on. Normal hardware is Phosphor copper and brass, need to be chromed for electronic products

Wire to wire connector’s pitch is 1.25mm-5.08mm which is included male/female housing and male/female terminal. Male terminal crimp with wire, inserting it into the female housing will connect with wire which is crimped with female terminal ,put it into the male housing. Usual raw material is PBT, PA66,PA6T,PA9T, LCP and so on. Normal hardware is Phosphor copper and brass, need to be chromed for electronic products.

Board to board connector mainly consist of male / female wafer. They are welded on two different PCB boards , then connect. Usual raw material is PA6T, PA9T, LCT and so on. Normal hardware is Phosphor copper ,need to be chromed for electronic products.

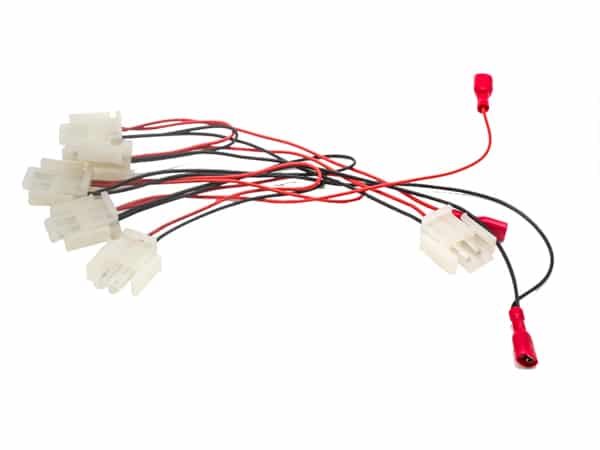

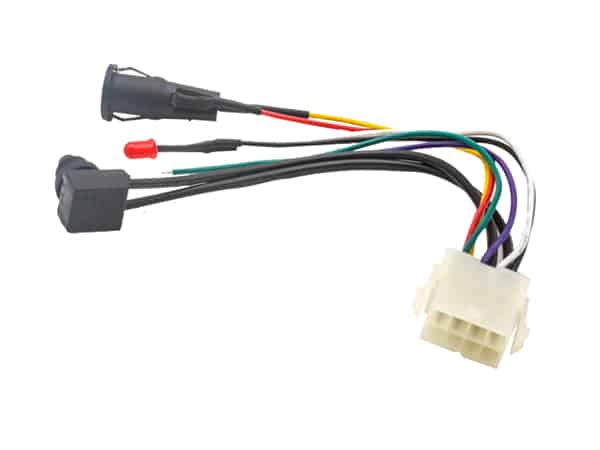

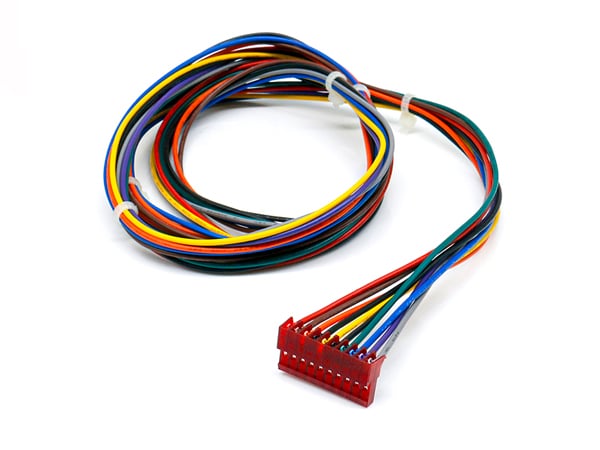

Inner wiring harness connector is by terminal crimped with wire, insert it into housing. They are mainly used for shell internal of electronic products.

It means terminal need to be welded or crimped, then inject plastic into molding.

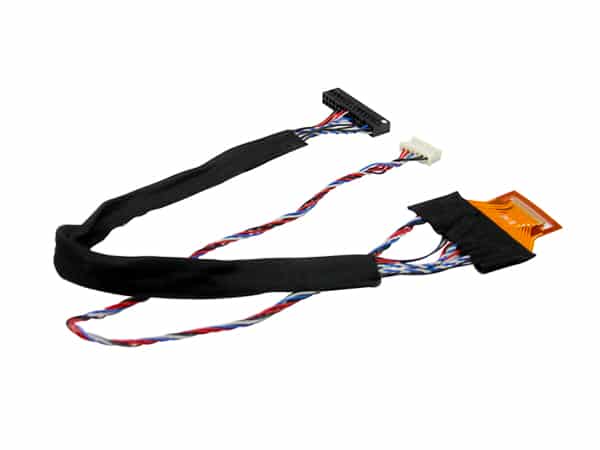

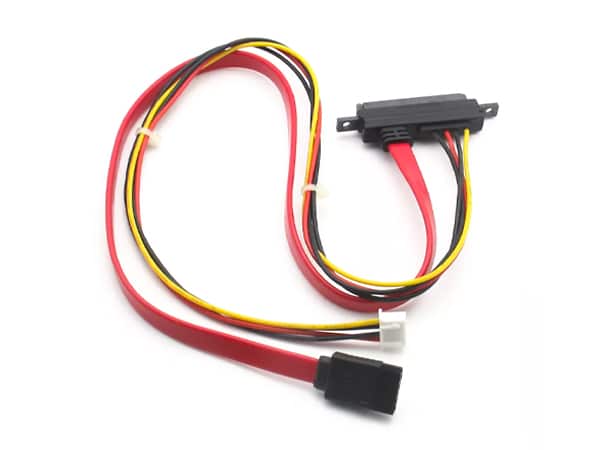

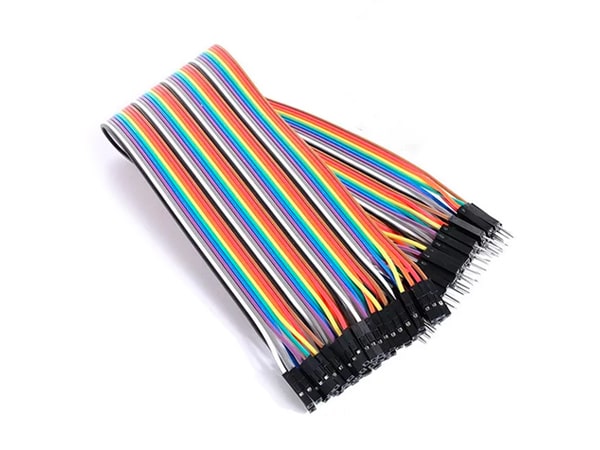

Connection function is very strong. They are flat cable, net cable, voice/ video cable, SATA,USB,D-SUB/VGA,DVI data cable, power cable.

Header connector’s structure is single row, double row even more choice. So does plastic layer. Usual raw material is PBT, PA6T, PA9T and LCP. Usually Finish is tin and gold-plated.

Header connector’s structure is single row, double row even more choice. So does plastic layer. Usual raw material is PBT, PA6T, PA9T and LCP. Usually Finish is tin and gold-plated.
